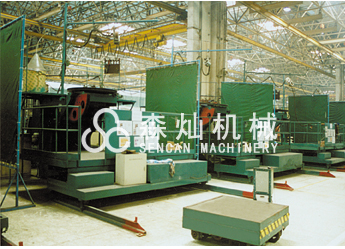

Positioner welding workstation

Main technical parameters

Model Rated load      Slewing speed Reverse Speed flip angle Diameter of worktable Power of slewing motor Power of turning motor Rotation speed adjustment Maximum eccentricity Maximum center of gravity distance
(kg) (rpm) (rpm) (°) (mm) (kw) (kw)  Section mode (mm) (mm)
HBJ-01 100 0.4-4 Manual 0-90 Ф400 0.18 / AC variable frequency stepless speed regulation 100 200
HBJ-03 300 0.1-1 Manual 0-90 Ф600 0.18 / 150 200
HBJ-03 300 0.1-1 1 0-90 Ф600 0.18 0.18 150 200
HBJ-06 600 0.05-0.5 0.4 0-90 Ф1000 0.37 0.75 150 200
HBJ-12 1200 0.05-0.5 0.4 0-90 Ф1200 0.75 1.1 200 250
HBJ-30 3000 0.05-0.5 0.2 0-135 Ф1400 1.1 2.2 200 300
HBJ-50 5000 0.05-0.5 0.2 0-135 Ф1500 1.5 3 200 300
HBJ-100 10000 0.05-0.5 0.2 0-135 Ф2000 3 4 200 400
HBJ-150 15000 0.04-0.4 0.15 0-135 Ф2200 4 7.5 200 500
HBJ-200 20000 0.04-0.4 0.15 -45-90 Ф2500 5.5 11 200 600
HBJ-300 30000 0.03-0.3 0.15 -45-90 Ф3000 5.5 15 200 650
HBJ-500 50000 0.02-0.2 0.06 -45-90 Ф4000 11 18.5 200 800

*Note: the specific parameters shall be determined according to the user's requirements.
